Description

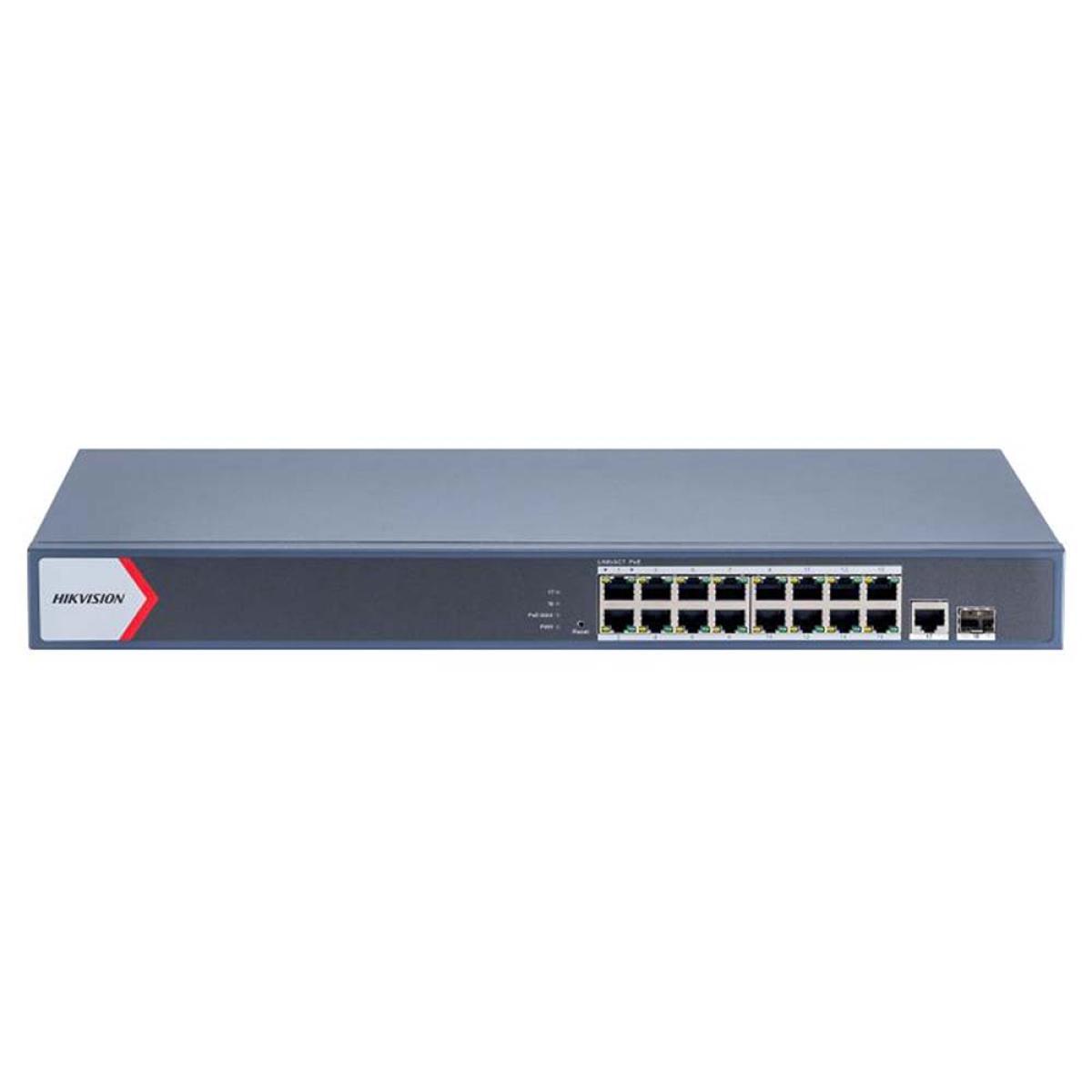

Hikvision DS-3E1520P-EI/M 16-Port Gigabit Smart-Managed PoE Switch with 4 Gigabit Uplinks

The Hikvision DS-3E1520P-EI/M is a professional Gigabit Smart-Managed PoE Network Switch designed for high-performance IP CCTV surveillance systems, office networks and commercial security installations.

Featuring 16 Gigabit PoE Ethernet ports, two additional Gigabit RJ45 uplink ports and two Gigabit SFP fiber uplink ports, this switch provides flexible connectivity for IP cameras, network video recorders, servers and compatible network devices.

The switch supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards, delivering up to 30W per PoE port with a combined PoE power budget of 125W.

With a switching capacity of 68Gbps and a packet forwarding rate of 50.59Mpps, the DS-3E1520P-EI/M is suitable for installations requiring reliable Gigabit network performance.

Its smart-management capabilities include VLAN configuration, Quality of Service (QoS), static link aggregation, port isolation, loop prevention and cable diagnostics.

Hikvision PoE Watchdog technology helps maintain surveillance reliability by automatically restarting compatible cameras that become unresponsive.

The switch also supports remote network monitoring and troubleshooting through Hik-Partner Pro, long-range PoE transmission up to 300 metres under suitable conditions, and 6kV surge protection.

Key Features

• 16 × Gigabit PoE Ethernet ports
• 2 × Gigabit RJ45 uplink ports
• 2 × Gigabit SFP fiber uplink ports
• 20 total network ports
• 125W shared PoE power budget
• Up to 30W per PoE port
• IEEE 802.3af/at support
• 68Gbps switching capacity
• 50.59Mpps forwarding rate
• Smart-managed network operation
• Hik-Partner Pro remote management
• PoE Watchdog automatic camera restart
• Up to 300m long-range PoE
• IEEE 802.1Q VLAN support
• Quality of Service (QoS)
• Static link aggregation
• STP/RSTP loop prevention
• Port isolation and cable diagnostics
• 6kV surge protection
• Rack-mount metal housing

Technical Specifications

Brand: Hikvision
Model: DS-3E1520P-EI/M
Product Type: Gigabit Smart-Managed PoE Switch
PoE Ports: 16 × 10/100/1000Mbps RJ45
RJ45 Uplinks: 2 × Gigabit
Fiber Uplinks: 2 × Gigabit SFP
Total Ports: 20
PoE Standards: IEEE 802.3af / IEEE 802.3at
Maximum PoE Per Port: 30W
Total PoE Budget: 125W
Switching Capacity: 68Gbps
Packet Forwarding Rate: 50.59Mpps
MAC Address Table: 16K
Long-Range PoE: Up to 300m
PoE Watchdog: Supported
VLAN: IEEE 802.1Q
QoS: Supported
Link Aggregation: Static
Loop Prevention: STP/RSTP
Surge Protection: 6kV
Power Supply: 100–240V AC
Maximum Power Consumption: 150W
Dimensions: 440 × 44 × 220.8mm
Installation: Desktop or Rack-Mounted

Recommended Applications

• IP CCTV surveillance systems
• High-resolution network camera installations
• Offices and corporate networks
• Hotels and hospitality facilities
• Schools and campuses
• Warehouses and logistics centres
• Residential estates
• Fiber-connected security networks
• Professional NVR installations

Important Installation Note: The total power consumption of connected PoE devices must remain within the shared 125W budget. Gigabit SFP transceivers and network cables may need to be purchased separately. Long-range transmission performance depends on connected devices and cable conditions.
