Description

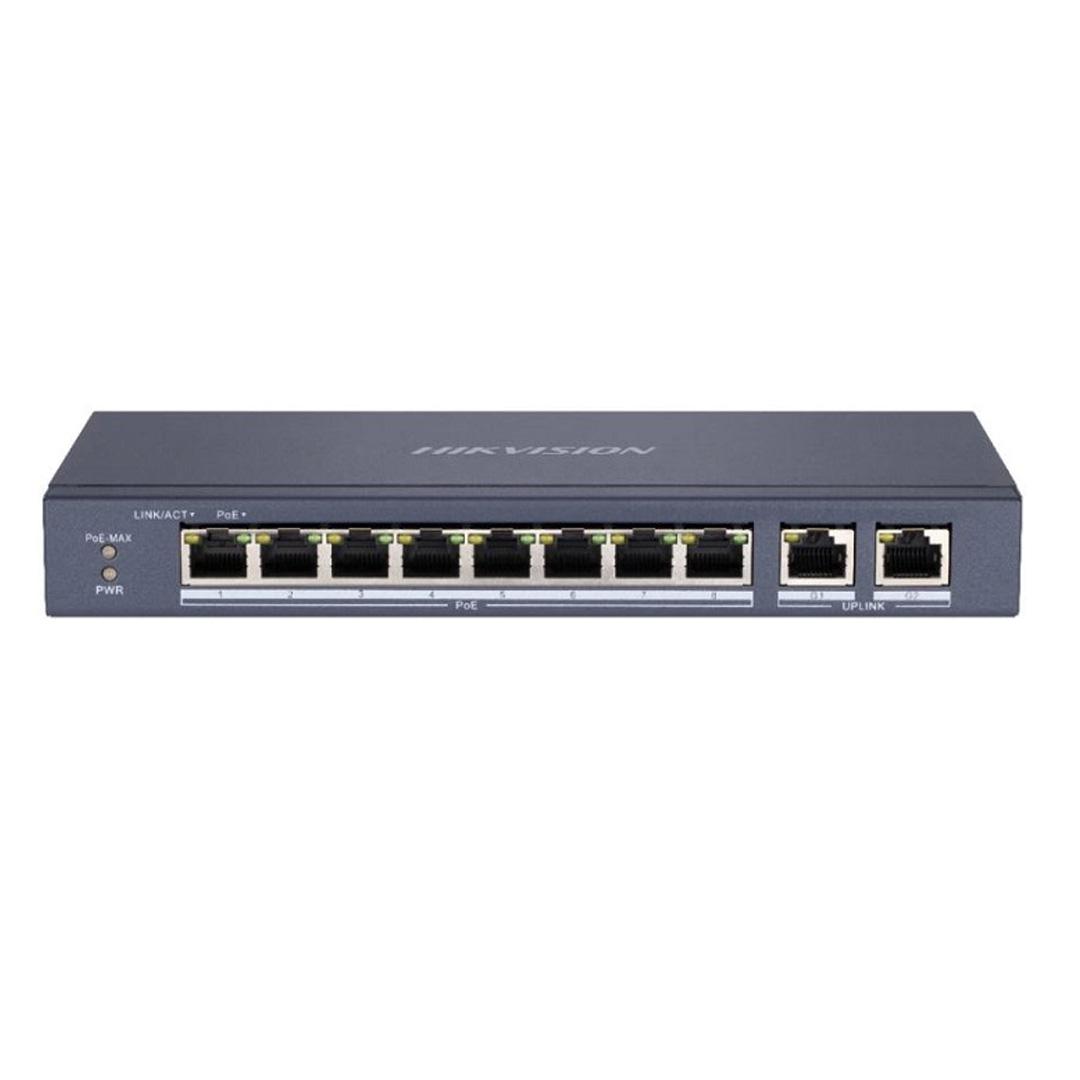

Hikvision DS-3E0310P-E/M 8-Port PoE Switch with 2 Gigabit Uplink Ports and 300m Long-Range Transmission

The Hikvision DS-3E0310P-E/M is a reliable 8-Port Fast Ethernet Unmanaged PoE Switch designed for IP CCTV surveillance systems, small business networks and professional security installations.

Featuring eight 10/100Mbps Power over Ethernet ports and two Gigabit RJ45 uplink ports, the switch provides convenient connectivity for compatible IP security cameras and other PoE-powered network devices.

The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, delivering up to 30W per PoE port with a combined power budget of 60W.

Its long-range transmission mode supports connections up to 300 metres on designated ports, making it suitable for surveillance installations requiring extended cable distances.

The two Gigabit uplink ports allow connection to compatible network video recorders, routers and other networking equipment.

A durable metal enclosure, 6kV surge protection and flexible desktop or wall-mounted installation make the DS-3E0310P-E/M a practical choice for residential, commercial and industrial CCTV networks.

As an unmanaged switch, it provides straightforward plug-and-play operation without requiring advanced network configuration.

Key Features

• 8 × 10/100Mbps PoE Ethernet ports
• 2 × Gigabit RJ45 uplink ports
• 10 total network ports
• IEEE 802.3af and 802.3at PoE compatibility
• Up to 30W PoE output per port
• 60W total PoE power budget
• Up to 300m long-range transmission mode
• 5.6Gbps switching capacity
• 4.17Mpps forwarding rate
• 6kV surge protection
• 8K MAC address table
• Durable metal enclosure
• Desktop or wall mounting
• Plug-and-play unmanaged operation

Technical Specifications

Brand: Hikvision
Model: DS-3E0310P-E/M
Product Type: Unmanaged PoE Network Switch
PoE Ports: 8 × 10/100Mbps RJ45
Uplink Ports: 2 × 10/100/1000Mbps RJ45
Total Ports: 10
PoE Standards: IEEE 802.3af / 802.3at
Maximum PoE Output Per Port: 30W
Total PoE Budget: 60W
Switching Capacity: 5.6Gbps
Packet Forwarding Rate: 4.17Mpps
MAC Address Table: 8K
Long-Range Transmission: Up to 300m
Surge Protection: 6kV
Power Input: 48V DC, 1.35A
Maximum Power Consumption: 65W
Housing Material: Metal
Dimensions: 217.6 × 103.35 × 27.8mm
Installation: Desktop or Wall-Mounted

Recommended Applications

• IP CCTV surveillance systems
• Small business security networks
• Residential CCTV installations
• Offices and commercial premises
• Warehouses
• Schools and institutions
• IP camera and NVR network connections

Package Contents: Hikvision DS-3E0310P-E/M PoE switch and manufacturer-supplied accessories. Confirm the supplied power adapter and other accessories against the actual packaging.

Important Installation Note: The total available PoE power is 60W across all eight PoE ports. Check the combined power requirements of connected cameras before installation. Long-range mode may reduce data transmission speed and depends on cable quality and installation conditions.
