Description

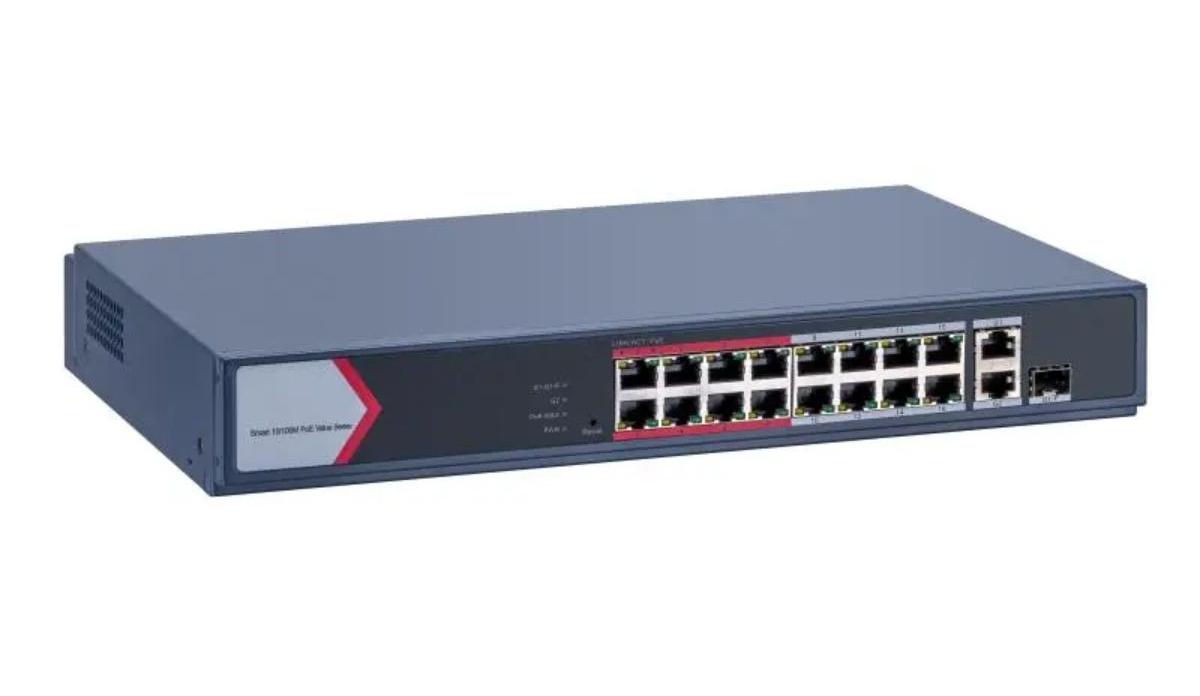

Hikvision DS-3E1318P-EI/M 16-Port Smart-Managed PoE Switch with Gigabit Uplinks and 130W Power Budget

The Hikvision DS-3E1318P-EI/M is a professional 16-port Fast Ethernet Smart-Managed PoE Switch designed for IP CCTV surveillance systems, commercial networks and structured security installations.

Featuring 16 × 10/100Mbps PoE Ethernet ports, one Gigabit RJ45 uplink and one Gigabit combo uplink, the switch provides centralized connectivity for IP security cameras, network video recorders and other compatible network devices.

The switch supports IEEE 802.3af and IEEE 802.3at Power over Ethernet standards, delivering up to 30W per port with a total shared PoE budget of 130W.

Its intelligent management features include VLAN configuration, port isolation, network monitoring, loop prevention and cable diagnostics.

Hikvision PoE Watchdog technology automatically detects and restarts compatible connected cameras that become unresponsive, helping improve surveillance system reliability.

Long-range PoE transmission supports distances of up to 300 metres under suitable operating conditions.

The DS-3E1318P-EI/M also features 6kV surge protection, a durable metal housing and rack-mount installation.

Key Features

• 16 × 10/100Mbps PoE Ethernet ports
• 1 × Gigabit RJ45 uplink
• 1 × Gigabit combo uplink
• 130W total PoE power budget
• Up to 30W per PoE port
• IEEE 802.3af/at support
• Smart network management
• Up to 300m long-range PoE transmission
• PoE Watchdog automatic camera restart
• IEEE 802.1Q VLAN support
• STP/RSTP loop prevention
• Port isolation
• Cable fault detection
• Network topology and health monitoring
• 6kV surge protection
• Rack-mount metal housing

Technical Specifications

Brand: Hikvision
Model: DS-3E1318P-EI/M(O-STD)
Product Type: Smart-Managed PoE Network Switch
PoE Ports: 16 × 10/100Mbps RJ45
Uplink Ports: 1 × Gigabit RJ45 + 1 × Gigabit Combo
PoE Standards: IEEE 802.3af / IEEE 802.3at
Maximum PoE Per Port: 30W
Total PoE Budget: 130W
Switching Capacity: 7.2Gbps Port Performance
Packet Forwarding Rate: 5.36Mpps Port Performance
MAC Address Table: 16K
Long-Range Transmission: Up to 300m
VLAN: IEEE 802.1Q
Loop Prevention: STP/RSTP
PoE Watchdog: Supported
Port Isolation: Supported
Surge Protection: 6kV
Power Input: 100–240V AC
Maximum Power Consumption: 150W
Installation: Rack-Mounted
Dimensions: 440 × 44 × 220.8mm

Recommended Applications

• IP CCTV surveillance installations
• Offices and commercial buildings
• Schools and educational institutions
• Warehouses and logistics centres
• Hotels
• Retail premises
• Residential estates
• Network video recorder installations
• Professional security infrastructure

Package Contents: Hikvision DS-3E1318P-EI/M switch and manufacturer-supplied accessories, subject to actual packaging.

Important: The total connected PoE load must not exceed 130W. Camera-facing ports support 10/100Mbps, while the uplinks support Gigabit connections. Long-range mode performance depends on connected devices, cable quality and operating conditions.
