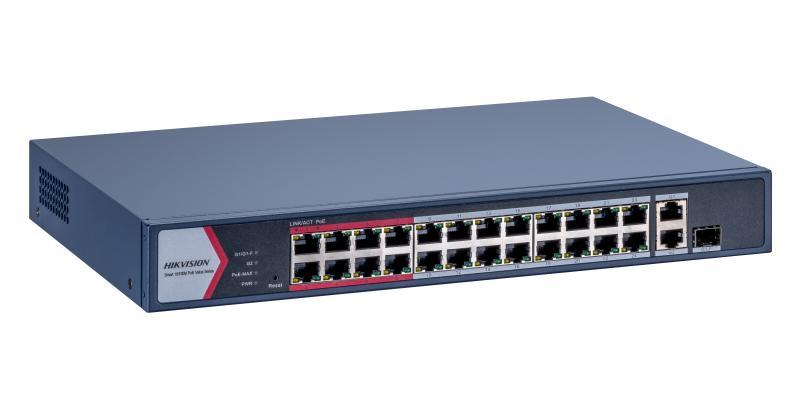

Hikvision DS-3E1326P-EI/M(O-STD) 24-Port Smart-Managed PoE Switch with 230W Power Budget

The Hikvision DS-3E1326P-EI/M(O-STD) is a professional 24-port Fast Ethernet Smart-Managed PoE Network Switch designed for medium- and large-scale IP CCTV surveillance systems.

Equipped with 24 × 10/100Mbps PoE Ethernet ports and Gigabit uplink connectivity, the switch provides centralized power and network access for compatible IP security cameras and other PoE-enabled devices.

Supporting IEEE 802.3af and IEEE 802.3at Power over Ethernet standards, the switch delivers up to 30W per port with a combined PoE power budget of 230W.

Its smart-management capabilities help installers and network administrators monitor connected devices, manage network traffic and troubleshoot connectivity problems.

Hikvision PoE Watchdog technology can automatically detect and restart unresponsive connected cameras, helping maintain reliable CCTV surveillance.

The switch also supports IEEE 802.1Q VLAN configuration, STP/RSTP loop prevention, cable diagnostics and long-range PoE transmission up to 300 metres under suitable conditions.

A durable metal housing, 6kV surge protection and rack-mount installation make the DS-3E1326P-EI/M suitable for professional security installations.

Key Features

• 24 × 10/100Mbps PoE Ethernet ports
• Gigabit RJ45 and combo uplink connectivity
• 230W total PoE power budget
• Up to 30W PoE output per port
• IEEE 802.3af / 802.3at compatibility
• Smart network management
• PoE Watchdog automatic camera restart
• Up to 300m long-range PoE transmission
• IEEE 802.1Q VLAN support
• STP/RSTP loop prevention
• Cable fault diagnostics
• Network health monitoring
• 6kV surge protection
• Durable metal housing
• Rack-mount installation

Technical Specifications

Brand: Hikvision
Model: DS-3E1326P-EI/M(O-STD)
Product Type: Smart-Managed PoE Network Switch
PoE Ports: 24 × 10/100Mbps RJ45
Uplink Ports: 1 × Gigabit RJ45 + 1 × Gigabit Combo
PoE Standards: IEEE 802.3af / IEEE 802.3at
Maximum PoE Per Port: 30W
Total PoE Power Budget: 230W
Long-Range Transmission: Up to 300m
PoE Watchdog: Supported
VLAN: IEEE 802.1Q
Loop Prevention: STP/RSTP
Cable Diagnostics: Supported
Surge Protection: 6kV
Power Input: 100–240V AC
Maximum Power Consumption: 250W
Housing: Metal
Installation: Rack-Mounted

Recommended Applications

• Medium- and large-scale IP CCTV installations
• Residential estates and gated communities
• Offices and commercial buildings
• Schools and campuses
• Hotels and hospitality facilities
• Warehouses and logistics centres
• Factories and industrial premises
• Shopping complexes
• Multi-camera NVR surveillance systems

Package Contents: Hikvision DS-3E1326P-EI/M switch and manufacturer-supplied accessories, subject to the actual packaging.

Important Installation Note: The combined power consumption of connected PoE devices must remain within the 230W shared budget. Each camera-facing port supports up to 100Mbps. Long-range mode performance depends on cable quality, connected devices and network configuration.
