Description

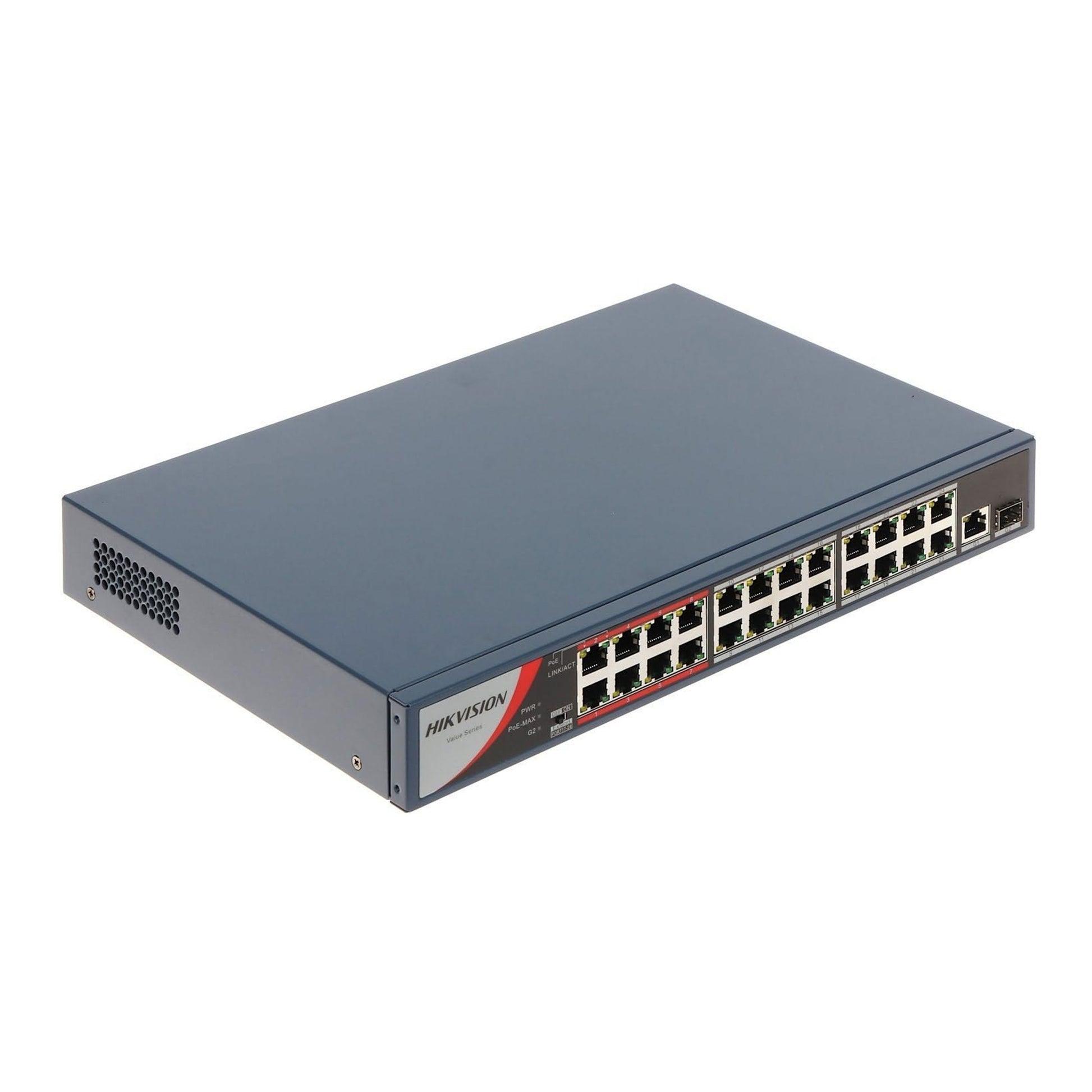

Hikvision DS-3E0326P-E/M 24-Port Unmanaged PoE Switch with Gigabit Uplinks and 230W Power Budget

The Hikvision DS-3E0326P-E/M is a professional 24-port Fast Ethernet unmanaged PoE network switch designed for medium- to large-scale IP CCTV surveillance installations.

Equipped with 24 × 10/100Mbps PoE Ethernet ports, one Gigabit RJ45 uplink and one Gigabit SFP fiber uplink, the switch provides centralized network connectivity and power for compatible IP cameras and other PoE-enabled devices.

Supporting IEEE 802.3af and IEEE 802.3at standards, the switch delivers up to 30W per PoE port, with a shared total PoE power budget of 230W.

Its extend mode supports long-distance PoE transmission of up to 250 metres on designated ports, subject to suitable network cables, device compatibility and reduced transmission speeds.

The switch offers an 8.8Gbps switching capacity, 6.547Mpps packet forwarding rate and priority handling for selected ports.

A durable metal enclosure and AC power input make the DS-3E0326P-E/M suitable for professional security and networking installations.

Key Features

• 24 × 10/100Mbps PoE RJ45 ports
• 1 × Gigabit RJ45 uplink
• 1 × Gigabit SFP fiber uplink
• IEEE 802.3af and 802.3at compatibility
• Maximum 30W PoE output per port
• 230W shared PoE power budget
• Up to 250m extended PoE transmission on supported ports
• High-priority ports for critical network traffic
• 8.8Gbps switching capacity
• 6.547Mpps packet forwarding rate
• Plug-and-play unmanaged operation
• Durable metal housing
• 100–240V AC power input

Technical Specifications

Brand: Hikvision
Model: DS-3E0326P-E/M
Product Type: 24-Port Fast Ethernet Unmanaged PoE Switch
PoE Ports: 24 × 10/100Mbps
RJ45 Uplink: 1 × 10/100/1000Mbps
Fiber Uplink: 1 × Gigabit SFP
PoE Standards: IEEE 802.3af / IEEE 802.3at
Maximum PoE Per Port: 30W
Total PoE Budget: 230W
Switching Capacity: 8.8Gbps
Packet Forwarding Rate: 6.547Mpps
MAC Address Table: 4K
Extended Transmission: Up to 250m on Supported Ports
Power Input: 100–240V AC
Maximum Power Consumption: 250W
Housing: Metal

Recommended Applications

• IP CCTV surveillance systems
• Residential estates
• Schools and campuses
• Warehouses and logistics facilities
• Office complexes
• Factories and industrial premises
• Commercial security networks
• Multi-camera NVR installations

Package Contents: Hikvision DS-3E0326P-E/M PoE switch and manufacturer-supplied accessories, subject to the actual packaging.

Installation Note: The combined PoE power requirements of connected devices must remain within the 230W budget. The camera-facing Ethernet ports operate at up to 100Mbps, while the uplinks support Gigabit connections. An SFP transceiver may need to be purchased separately.
