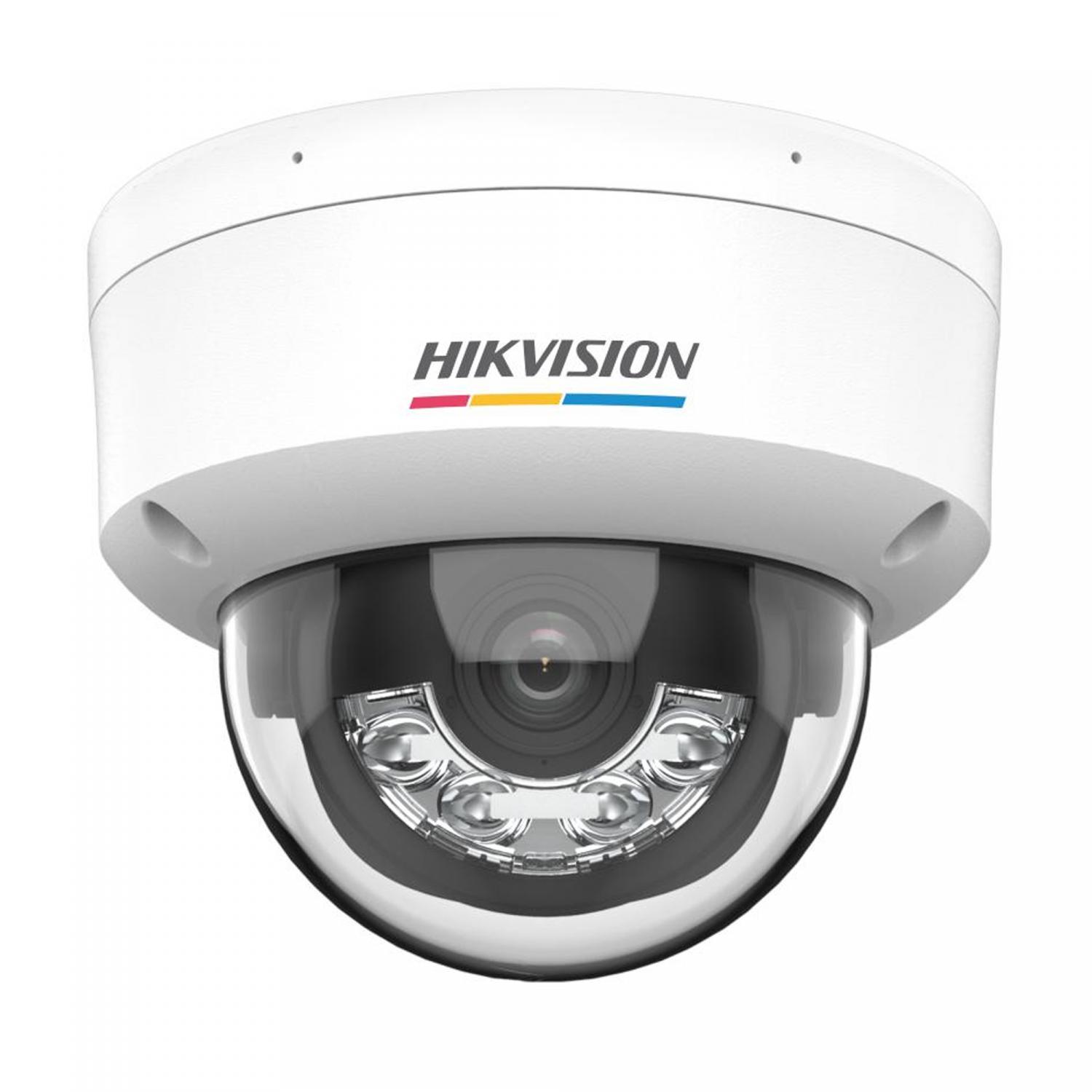

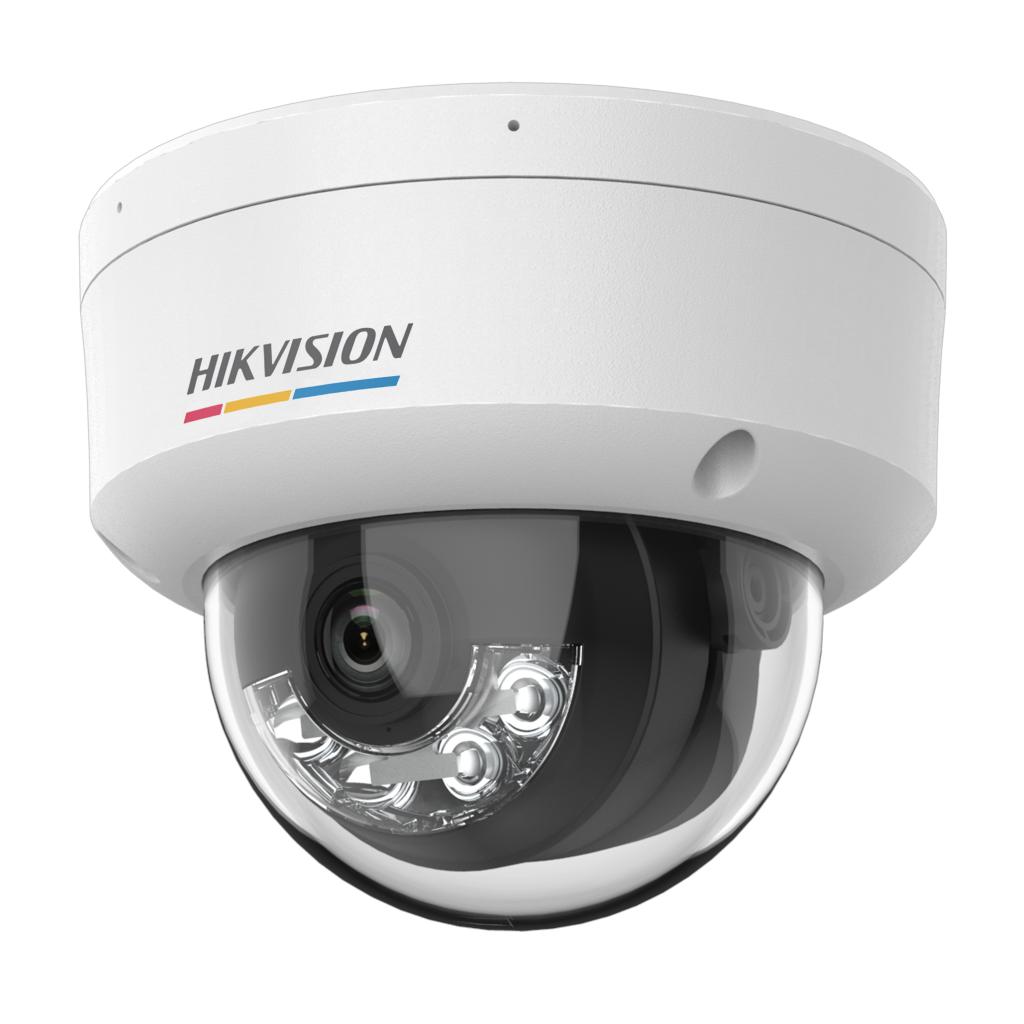

Hikvision DS-2CD1147G3-LIU 4MP ColorVu 3.0 Smart Hybrid Light Dome IP Camera

The Hikvision DS-2CD1147G3-LIU is a 4MP ColorVu 3.0 Fixed Dome Network Camera designed to provide high-quality security surveillance for homes, offices, shops, schools, hotels, warehouses and commercial premises.

Equipped with Hikvision ColorVu 3.0 imaging technology and a large F1.0 aperture, the camera delivers detailed colour images in low-light environments.

Its 4-megapixel image sensor supports video resolutions up to 2560 × 1440 pixels. The camera is available with a 2.8mm wide-angle lens or a 4mm lens for more focused coverage.

Smart Hybrid Light technology combines infrared and white-light illumination with a range of up to 30 metres, supporting flexible day-and-night surveillance.

Human and vehicle detection helps identify relevant motion events, while the built-in microphone allows one-way audio capture through compatible CCTV systems.

The camera also supports H.265+ video compression, Power over Ethernet (PoE), IP67 weather protection and IK08 impact resistance.

Key Features

• 4MP high-resolution IP surveillance
• Hikvision ColorVu 3.0 imaging technology
• F1.0 large-aperture lens
• 2.8mm and 4mm lens options
• Smart Hybrid Light with infrared and white light
• Up to 30m supplementary illumination
• Human and vehicle detection
• Built-in microphone for audio recording
• H.265+ video compression
• PoE connectivity
• IP67 dust and water resistance
• IK08 impact-resistant dome housing

Technical Specifications

Brand: Hikvision
Model: DS-2CD1147G3-LIU
Camera Type: Fixed Dome IP Network Camera
Resolution: 4MP (2560 × 1440)
Image Sensor: 1/3-inch Progressive Scan CMOS
Imaging Technology: ColorVu 3.0
Lens: 2.8mm or 4mm (confirm supplied version)
Aperture: F1.0
Horizontal Field of View: 101.5° (2.8mm) / 84.1° (4mm)
Night Illumination: Infrared and White Light, Up to 30m
Audio: Built-in Microphone
Detection: Human and Vehicle
Video Compression: H.265+ / H.265 / H.264+ / H.264
Power: 12V DC / PoE
Weather Protection: IP67
Impact Resistance: IK08
MicroSD Card Slot: Not Available on Standard LIU

Applications

• Homes and residential estates
• Offices and reception areas
• Shops and supermarkets
• Hotels and schools
• Warehouses and commercial buildings
• Entrances, corridors and building exteriors

Package Contents: Hikvision dome IP camera and manufacturer-supplied mounting accessories, subject to the actual package.

Important: Confirm the lens size before ordering. NVR, storage drive, PoE switch or power supply, network cable and installation materials may be sold separately.
