Description

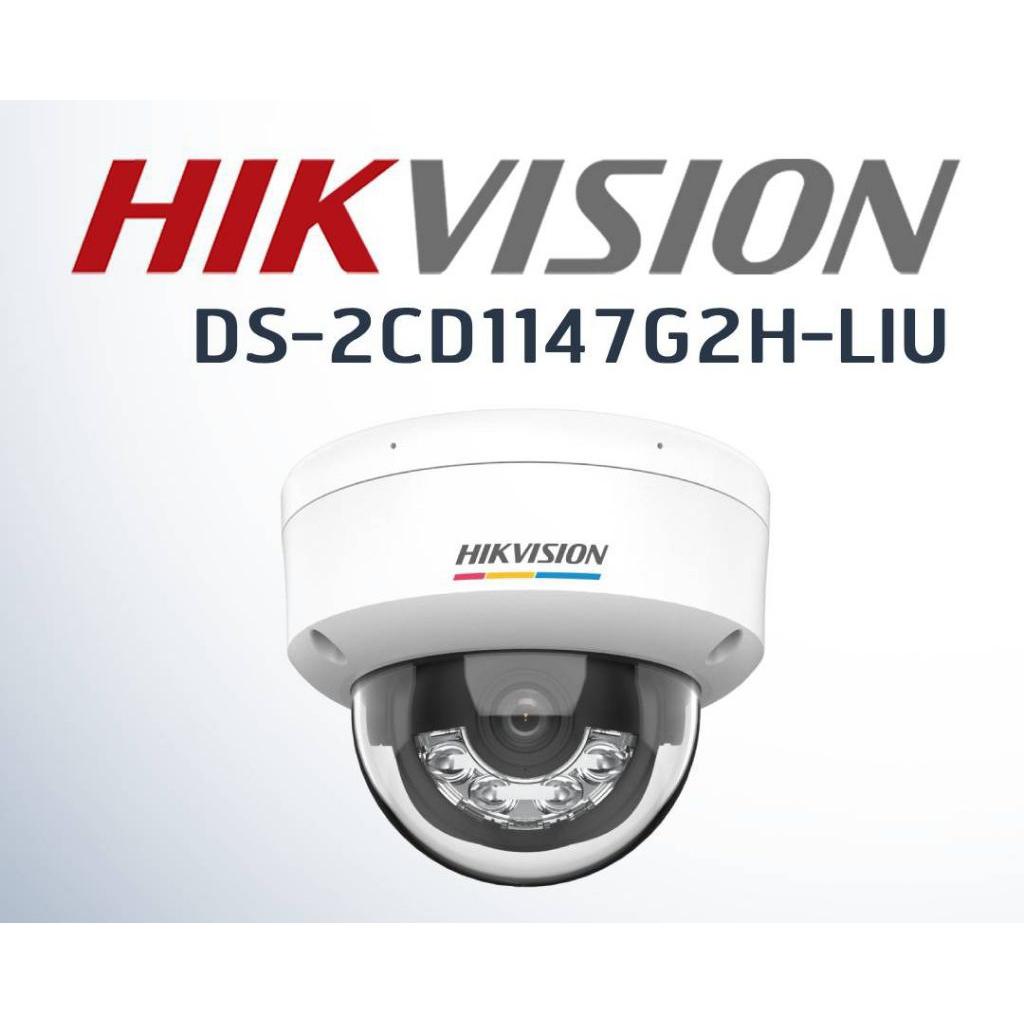

Hikvision DS-2CD1147G2H-LIU (2.8mm) 4MP ColorVu Smart Hybrid Light Dome IP Camera

The Hikvision DS-2CD1147G2H-LIU (2.8mm) is a 4MP ColorVu Smart Hybrid Light Fixed Dome Network Camera designed for high-quality surveillance in residential and commercial environments.

Featuring Hikvision ColorVu technology and a large F1.0 aperture, this camera delivers detailed colour images in low-light conditions. Its 4MP sensor captures video at resolutions up to 2560 × 1440 pixels, while the fixed 2.8mm lens provides a wide 96° horizontal viewing angle.

Smart Hybrid Light technology combines infrared and white-light illumination with a supplementary lighting range of up to 30 metres, supporting flexible night-time monitoring.

The camera also features human and vehicle motion classification, a built-in microphone for audio capture, and H.265+ compression to help reduce video storage and bandwidth requirements.

With an IP67-rated weather-resistant housing, IK08 impact resistance and Power over Ethernet (PoE) support, the camera is suitable for properly installed indoor and outdoor CCTV surveillance systems.

Key Features

• 4MP high-resolution IP surveillance
• Hikvision ColorVu low-light colour imaging
• 2560 × 1440 maximum resolution
• Fixed 2.8mm F1.0 lens
• 96° horizontal viewing angle
• Smart Hybrid Light with infrared and white light
• Up to 30m supplementary illumination
• Human and vehicle detection
• Built-in microphone for one-way audio capture
• H.265+ video compression
• 120dB Wide Dynamic Range
• Power over Ethernet (PoE)
• IP67 weather resistance
• IK08 impact-resistant dome housing

Technical Specifications

Brand: Hikvision
Model: DS-2CD1147G2H-LIU
Lens: 2.8mm Fixed
Camera Type: Dome IP Network Camera
Resolution: 4MP
Maximum Resolution: 2560 × 1440
Image Sensor: 1/3-inch Progressive Scan CMOS
Aperture: F1.0
Horizontal Viewing Angle: 96°
Night Illumination: Infrared and White Light, Up to 30m
Audio: Built-in Microphone
Detection: Human and Vehicle Classification
Video Compression: H.265+ / H.265 / H.264+ / H.264
Wide Dynamic Range: 120dB WDR
Power: 12V DC / PoE IEEE 802.3af
Weather Protection: IP67
Vandal Resistance: IK08
MicroSD Card Slot: Not Available on Standard LIU
Colour: White

Applications

• Homes and residential buildings
• Offices and reception areas
• Shops and supermarkets
• Schools and institutions
• Warehouses and commercial buildings
• Corridors, entrances and building exteriors

Package Contents: Hikvision dome camera and manufacturer-supplied installation accessories, subject to the actual package.

Important: Compatible NVR, hard drive, PoE switch or power adapter, network cable and installation accessories may be required separately. This model includes a microphone but does not provide two-way audio or onboard microSD storage.
