Hikvision HF-C108 8-Zone Conventional Fire Alarm Control Panel — 256-Device Capacity

Description

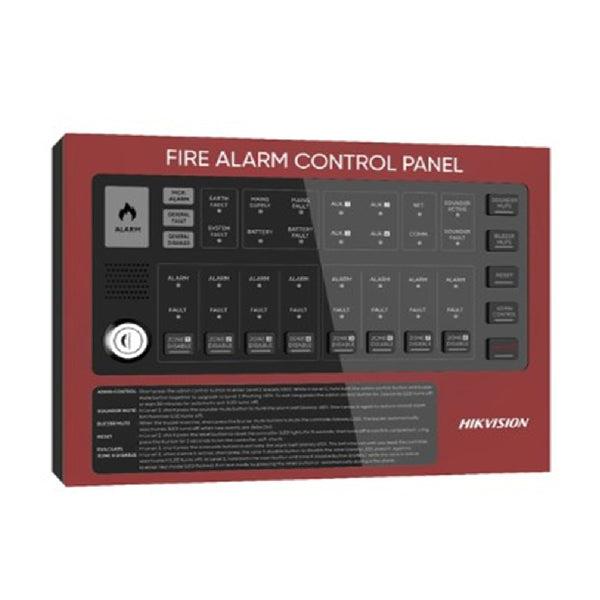

Hikvision HF-C108 8-Zone Conventional Fire Alarm Control Panel

The Hikvision HF-C108 is an eight-zone conventional fire alarm control panel designed to provide centralized fire detection, alarm monitoring and system control for compatible conventional fire alarm installations.

Featuring eight independent detection zones, the HF-C108 supports up to 32 compatible conventional fire detection devices per zone, providing a maximum capacity of 256 devices across the complete system. This makes it suitable for organizing detectors and manual call points into identifiable building zones.

The control panel can be integrated with appropriately specified conventional smoke detectors, heat detectors, manual call points and fire alarm notification devices to form a coordinated fire detection system.

Its front control interface provides visual alarm and fault indications, with local silence, reset and self-test functions for authorized operators and maintenance personnel.

The HF-C108 incorporates Ethernet, RS-485 and USB interfaces, together with auxiliary connections, fire bell outputs, alarm and fault relay outputs and a 24V DC auxiliary power output.

The panel operates on 110–240V AC mains power and is designed to work with two 12V/2.2Ah sealed lead-acid backup batteries, supporting continued operation during mains power interruptions when correctly installed and maintained.

Its compact metal enclosure measures approximately 300 × 220 × 80mm and supports wall-mounted installation in suitable indoor environments.

The Hikvision HF-C108 is appropriate for offices, schools, retail buildings, warehouses, residential developments and other facilities requiring professionally designed conventional fire alarm monitoring.

Important: This product is the fire alarm control panel only, not a complete fire alarm installation kit. Detectors, call points, sounders, cabling, backup batteries and other accessories must be specified and supplied as required. Confirm battery inclusion with the supplier.

Fire alarm system design, installation, commissioning and maintenance should be carried out by qualified personnel in accordance with applicable building and fire safety requirements.
